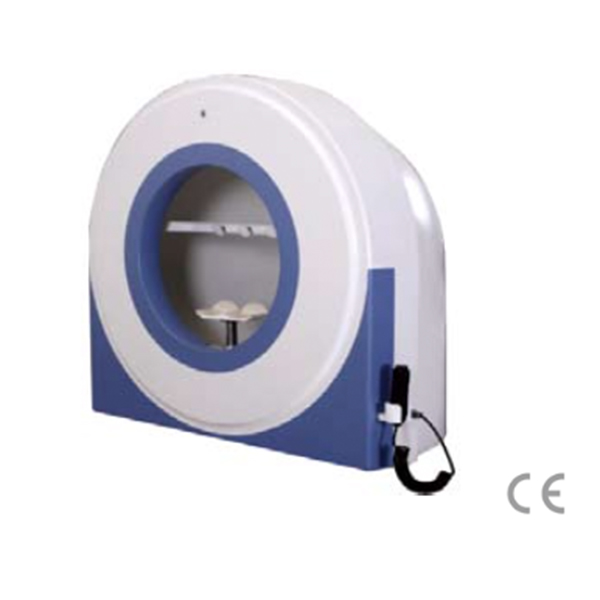

Perimeter

Stimulus Type:

LED

Stimulator screen :

Hemispherical bowl,radius 30cm integrated

Stimulus Source :

Light emitting diode,wave length 580nm-650nm

Stimulus Size:

goldmann III

Stimulus Intensity:

≤1000 asb

Stimulus Duration :

Adjustable 0.2 to 2 seconds

Stimulus step :

total27, step 1

Minimum inter-stimulus delay :

Adjustable 0.2to 2 seconds

Background illumination :

4 asb

Lens holder diameter:

35mm (optional)

Stimulus points:

144(0-60°),72(0-30°),72(60-90°),61(0-10° red),114(blind spot)

Chin rest moving range :

vertical 70mm,horizontal 90mm

Fixation Method :

Automatic monitoring with two options.

Available blind spot method,Eye tracking method.

In both methods,fixation errors are to be immediately announced by visual and audible warnings.

The standard video camera should provide visual of the patient's eye for additional monitoring.

Test Range:

Default test(0-60°),Yellow spot test (central 0-10°),Central 0-30°test,Quadrant test,Peripheral test (60-90°),Blind spot test,Custon test

Stimulator unit dimensions:

APS-6000B 67×66×38 cm (HxWxD)

APS-6000C 75×60×65 cm (HxWxD)

Stimulator unit weight :

18 KG approx(APS-6000B)

40 KG approx(APS-6000C)

Stimulator unit power requirements :

110V/220V AC 50-60Hz
