Ophthalmic A Scan

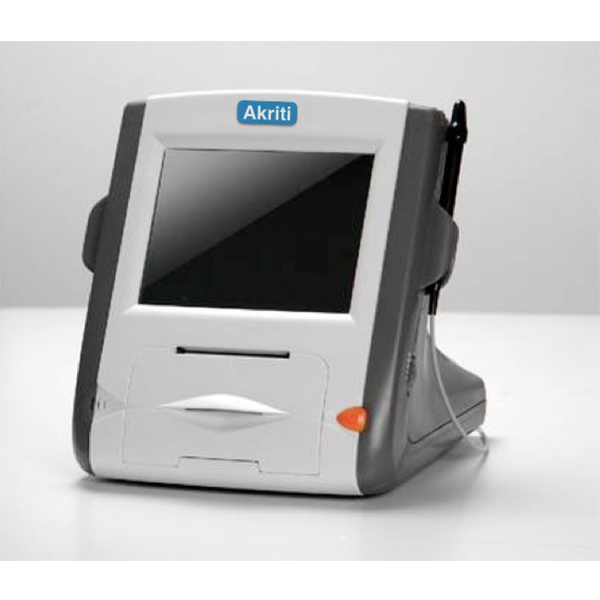

Akriti Ophthalmic Ultrasound A Scan

Touch screen & human engeering design
Auto gain compensation
Store 10 scanning results
Gain: 90dB
Eye mode: Phakic/ Aphakic/ Pesudo
IOL formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS
Curve freeze: Manual and auto recognition freeze
Output: IOL calculation table and A scan curve
High integration, super stabilization
Probe: 10MHz solid probe, inner luminated
Precision: 0.06 mm
Detect depth: 16-40 mm
Resolution factor: 0.01mm
Stat. Calculation: Average and standard deviation.
Output mode: Build-in high speed heat-sensitive printer, output the IOL calculate table and A scan curve.
Display: Large scale color LCD
Power: AC220 50Hz
Size: 170x170x180mm
Weight: 1kg
